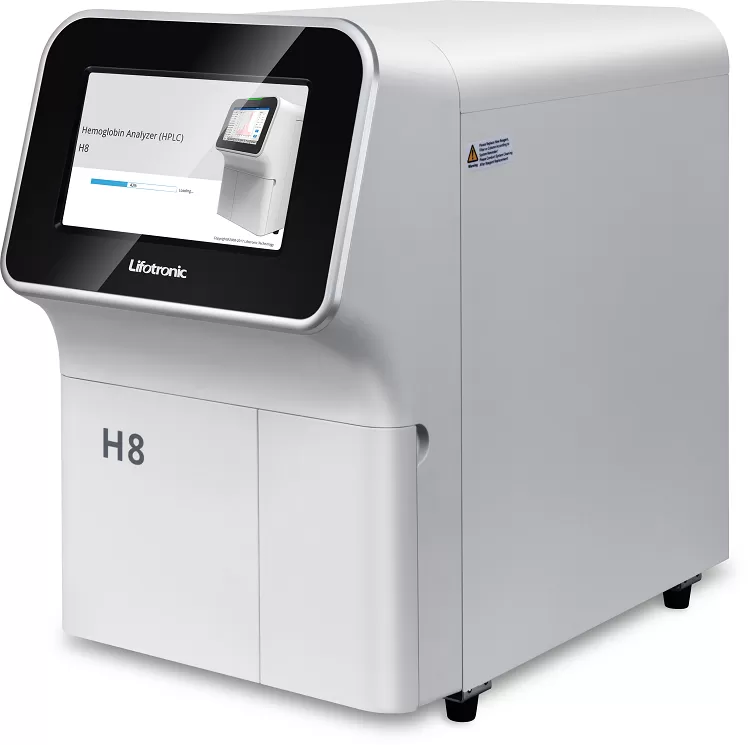

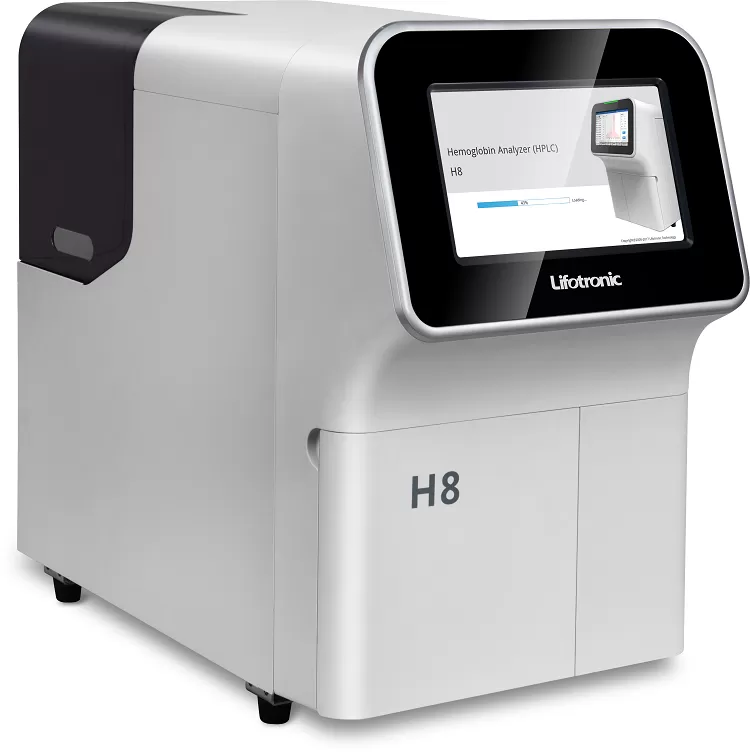

Name: H8
Brand: Lifotronic

Technical Specification	Details
Analyzer	H8 Hemoglobin Analyzer (HPLC)
Methodology	High-Performance Liquid Chromatography (HPLC)
Test Modes	Variant Mode, Thalassaemia Mode
Test Range	3% – 18%
Precision	CV ≤ 1.5%
Test Speed	130 Secs/T for Variant Mode, 380 Secs/T for Thalassaemia Mode
Sample Type	Venous Blood, Finger Peripheral Blood, Lyophilized Whole Blood
Auto Sample Station	Peripheral Blood, 500 µL (150 Dilution Ratio)
Sample Positions	10 Positions
Photometer	415 nm + 500 nm Detector
Chromatography Column	Available Tests ≥ 800T
Filter	≥ 400T
Display	10.1" TFT True Color LCD Touch Screen
Software	Linux Software with Self-Diagnosis to Monitor and Detect System Errors
Reagent Kit	Eluent A, Eluent B, Eluent C, Hemolysin, Calibrator, QC Material (Weight Sensor ±1%)
Information Input	Scanner or Touch Keypad
Storage	4,000 Sample Results
Connection	USB, LAN, LIS Compatible
Printer	Thermal Printer and External Laser Printer
Temperature	10–30 °C (50–86 °F)
Humidity	≤ 80%
Power	AC 100–240 V, 50/60 Hz, 120 VA
Dimensions	600 mm × 360 mm × 540 mm (23.6"H × 14.2"W × 21.3"D)
Weight	36.8 kg

High Performance Liquid Chromatography (HPLC), Variant Model, Thalassemia Model, Test range 3%-18%, CV<1.5%, 130 Sec / T for Variant Model, 380 Sec / T for Thalassemia Mode, 10 sample position, wide report items HbA1a, HbA1b, HbF, LA1c, HbA1c,HbA0, V-Window (Variant Model) HbF, HbA₂, HbA1c,Hb Variant (E/ D/ S/ C), (B-Thalassemia Model), Dual-wavelength (415nm/500nm) photometer.
