Name: FCR Capsula XL 2
Brand: Fujifilm

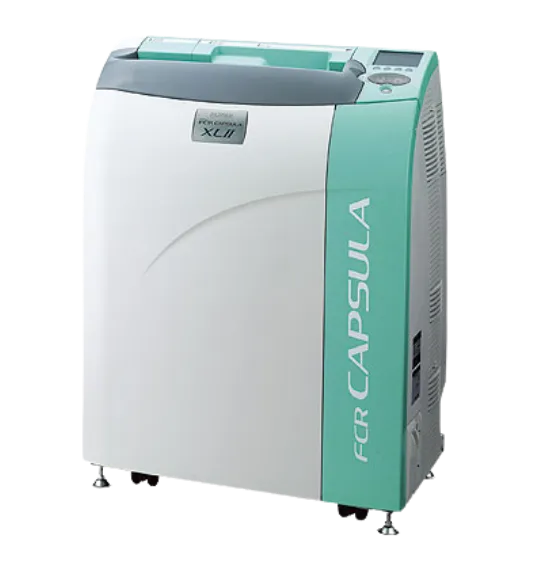

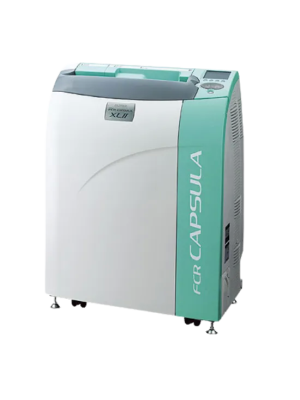

FCR Capsula XL 2

One of the FCR key components is an Imaging Plate, or IP, that is used in place of X-ray film to easily digitize X-ray images. The FCR CAPSULA XLII features the IP in an unprecedented compact frame, as it incorporates over 70 years of Fujifilm's extensive technology and know-how.

CAPSULA, meaning small box in Latin, has been cleverly trimmed to be smaller and lighter, boosting flexibility on installation and layout, while maintaining the specifications for a broad range of diagnostic imaging needs from general radiography to pantomography. Plus, the optional capability of 50-micron reading with the HR-V or HR-VI can be utilized to visualize finer and more minute structures for better diagnosis.

Get a Quote Download Brochure

The Fujifilm FCR Capsula XL 2 is a compact and high-performance computed radiography system designed to deliver fast and high-quality digital imaging. It is capable of processing up to 94 imaging plates per hour, making it suitable for busy healthcare environments such as hospitals, clinics, and diagnostic centers. Its small footprint and lightweight design allow for easy installation in limited spaces without compromising performance or functionality.

This system supports multiple cassette sizes and imaging applications, including general radiography, orthopedic studies, and dental pantomography. It also offers optional 50-micron high-resolution scanning for enhanced image detail, making it suitable for more specialized tasks like mammography when paired with compatible accessories. Fujifilm’s Image Intelligence technology further enhances diagnostic accuracy by improving image clarity, contrast, and noise reduction.

With a fast preview time of approximately 23 seconds, the FCR CAPSULA XL II helps improve workflow efficiency and patient throughput. It is user-friendly, integrates well with existing imaging systems, and requires minimal maintenance, making it a reliable and cost-effective solution for healthcare facilities transitioning to or expanding their digital imaging capabilities.

Specification	Details
Imaging Technology	Imaging Plate (IP) replaces X-ray film for digitized imaging
Reading Resolution	Optional 50-micron reading with HR-V or HR-VI
Throughput	Up to 94 IPs/hour (with 35 × 35 cm IP at 5 pixels/mm)
Image Display Time	Approximately 23 seconds
Cassette Types Supported	Type CC, LC, CH
Imaging Applications	General radiography, lumbar spine, chest, pantomography (15 × 30 cm), extremities
Operation Mode	Auto IP reading and image processing upon cassette insertion
User Interface	On-screen monitor controls and status/progress display
Workstation Integration	CR Console for patient ID, image review, processing, printing, DICOM, and QA functions
Image Enhancement Technology	Image Intelligence™ by Fujifilm
Mammography Support	Optional; requires HR-V or HR-VI and CH cassette
HR-VI Enhancements	Improved image quality, compatible with MAMMOASCENT AWS-c and Fujifilm Mammography QC Program
Mammography Compatibility	FDA 510(k) approved (with HR-VI and appropriate software); not applicable in Canada
Quality Control Program	Compatible with Fujifilm Mammography QC Program
Installation Flexibility	Compact and lightweight design for various clinical layouts

There are no any FAQs.

FCR Capsula XL 2

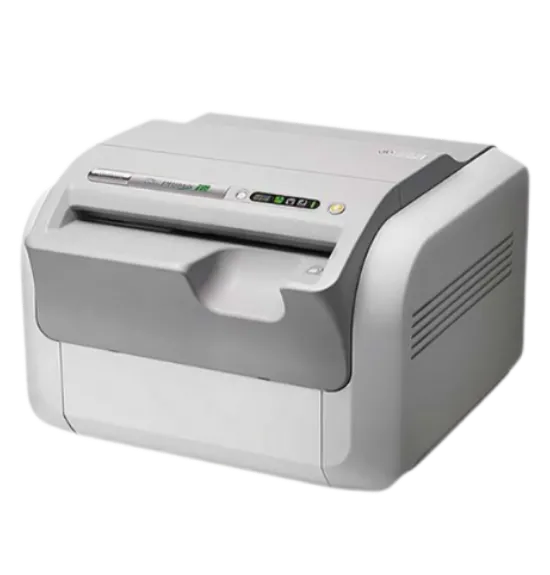

FCR Prima T2

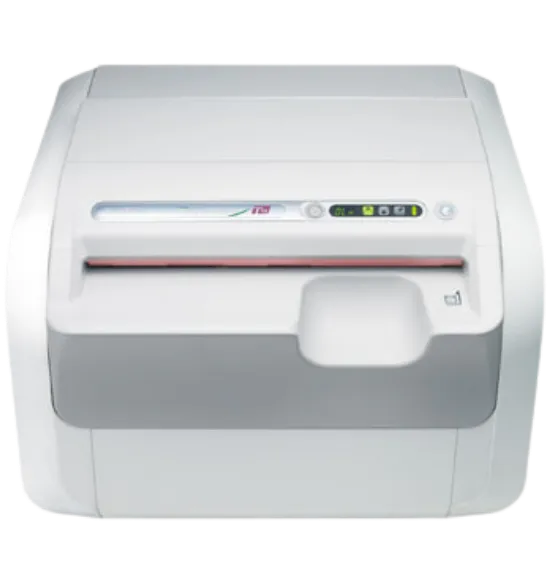

FCR Prima Tm
