Name: FDR D-EVO II
Brand: Fujifilm

FDR D-EVO II

The Fujifilm FDR D-EVO II is a lightweight and durable digital radiography (DR) detector designed for high-quality imaging across a range of clinical applications. Built with a strong magnesium alloy body and featuring water-resistant and antibacterial properties, it ensures both durability and infection control. The detector is suitable for use in general radiography, emergency rooms, orthopedics, and mobile imaging.

Equipped with Fujifilm’s patented ISS (Irradiation Side Sampling) technology and a cesium iodide (CsI) scintillator, the FDR D-EVO II offers excellent image quality with low patient dose. The system supports wireless image transfer, fast image previews in under 2 seconds, and automatic exposure detection through SmartSwitch technology, helping streamline workflow without needing a cable connection to the generator. Its internal memory can store up to 100 images, enabling continued operation during network interruptions.

Get a Quote Download Brochure

Equipped with Fujifilm’s ISS (Irradiation Side Sampling) technology and a cesium iodide (CsI) scintillator, the FDR D-EVO II offers excellent image quality with low patient dose. The system supports wireless image transfer, fast image previews in under 2 seconds, and automatic exposure detection through SmartSwitch technology, helping streamline workflow without needing a cable connection to the generator. Its internal memory can store up to 100 images, enabling continued operation during network interruptions.

Model Name	Flat Panel Detector (DR-ID 1211SE) for FDR D-EVO II System (DR-ID1200)	Flat Panel Detector (DR-ID 1212SE) for FDR D-EVO II System (DR-ID1200)
Type	Cassette size detector with ISS (Irradiation Side Sampling system)	Cassette size detector with ISS (Irradiation Side Sampling system)
Scintillator	CsI (Cesium iodide)	CsI (Cesium iodide)
Detector External Size	460 × 384 × 15 mm (Approx.) [18" × 15" × 0.6"]	460 × 460 × 15 mm (Approx.) [18" × 18" × 0.6"]
Weight	Approx. 2.6 kg [5.7 lbs.] (Including battery)	Approx. 3.2 kg [7.1 lbs.] (Including battery)
Pixel Pitch	0.15 mm	0.15 mm
Pixels	2836 × 2336 pixels	2836 × 2832 pixels
Wireless Standard	IEEE 802.11n (2.4GHz, W52/W53/W56/W58)	IEEE 802.11n (2.4GHz, W52/W53/W56/W58)
Image Preview	Less than 2 sec	Less than 2 sec
Cycle Time	Less than 9 sec (wired) Less than 10 sec (SmartSwitch)	Less than 9 sec (wired) Less than 10 sec (SmartSwitch)
Battery Recharging Time	Approx. 3 hours (with Battery Charger) Approx. 4 hours (with Docking Stand)	Approx. 3 hours (with Battery Charger) Approx. 4 hours (with Docking Stand)
Battery Performance	Standby: Approx. 4 hours Sleep mode: Approx. 7h 30min Extra sleep mode: Approx. 18h 30min	Standby: Approx. 4 hours Sleep mode: Approx. 7h 30min Extra sleep mode: Approx. 18h 30min

There are no any FAQs.

FDR D-EVO II

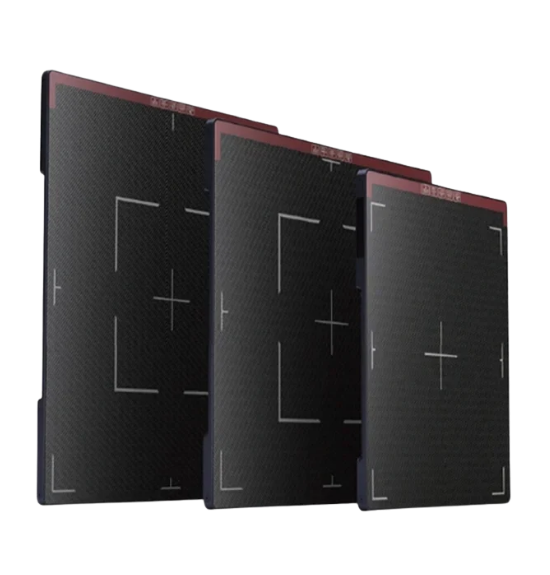

Prudent Optimum 1717
