3rd Generation Fluorescent Dye Technology, economy CPT, 5‑part differential automatic hematology analyzer using advanced fluorescent molecular staining combined with flow cytometry and laser scatter. Designed for small to mid-sized labs, it delivers up to 80 tests/hour and excels at detecting low-level abnormal cells. With a fully closed QC system traceable to ICSH reference methods, it ensures accuracy, reliability, and ease of operation.

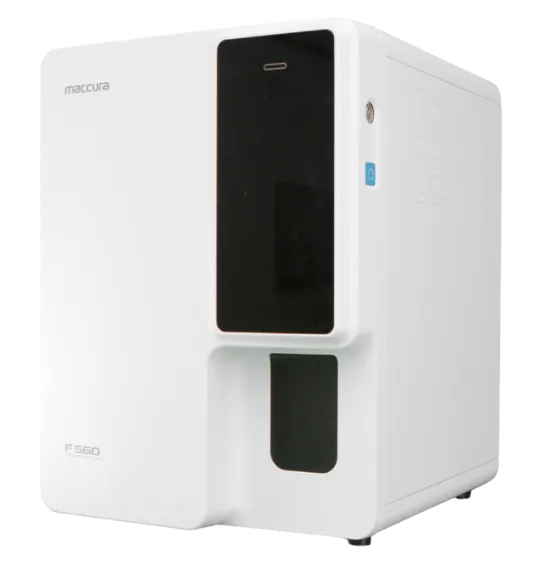

The F 560 DM Haematology Analyser (5-part, Without Autoloader) is an advanced hematology system designed for high-performance blood cell analysis. It incorporates 3rd Generation flow cytometry technology with tri-directional light detection (FSL, SSC, SFL) to precisely measure cell size, granularity, and nucleic acid content. This enables superior sensitivity for detecting abnormal cells, such as immature granulocytes and lymphoblasts. The analyser offers CBC + DFF (Diff) testing, supports multiple sample types (whole blood, capillary, pre-dilution), and features a user-friendly interface with smart graphical analysis, including 30 scattergrams and histograms for accurate WBC differentiation. With a throughput of 60 samples per hour, comprehensive clinical flags, and easy maintenance functions, it ensures reliable results for diagnostic laboratories.
| Category | Specification |
|---|---|
| Technology | 3rd Generation Fluorescent Dye Technology combined with Flow Cytometry and Laser Scatter |
| System Type | Fully automated closed system |
| Throughput | Up to 80 tests/hour |
| Sample Types | Whole blood, Capillary blood, Pre-diluted blood |
| Sample Volume | 20 µL per sample |
| Detection Channels | 3 channels: Forward Scatter (FSC), Side Scatter (SSC), Side Fluorescence (SFL) |
| Detection Principles | Reflectivity/Refractometry (FSC), Light Scattering (SSC), Fluorescence (SFL) |
| Differential Count | 5-part differential (WBC, RBC, PLT, Hemoglobin, Baso) |
| Parameters Reported | 24 routine parameters + 4 research parameters |
| Flagging Capability | Automatic flagging for abnormal cells and results |
| LIS Connectivity | Bi-directional communication via RS-232/USB; compatible with 64-bit Windows 7/10 |
| Display | Digital LCD with kVp, mA, and mAs indicators |
| Dimensions | Compact design (0.1 m² footprint) |
| Weight | Approximately 47 kg |
| Power Requirements | Standard AC power (details not specified) |
| Approval Certifications | CE, FDA, BIS, AERB, ISO 9001, ISO 45001, ISO 13485, ISO 14001, ISO 1002 |
